GST-IFP4M
Fire Alarm > ตู้ควบคุมสัญญาณแจ้งเพลิงไหม้แบบระบุตำแหน่ง

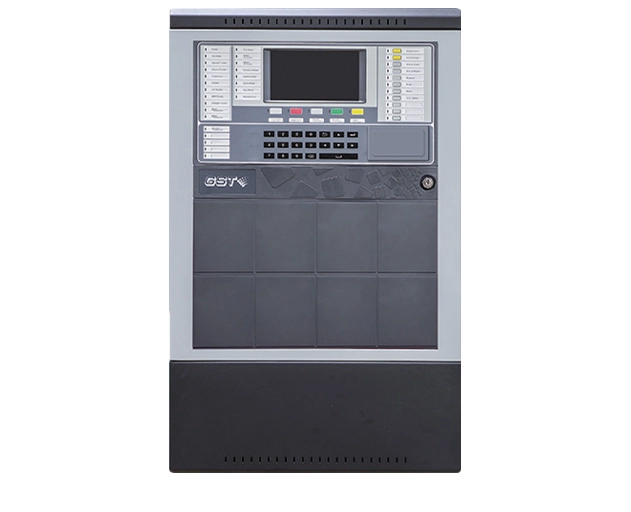

ตู้ควบคุม Fire Alarm แบบระบุตำแหน่ง รุ่น GST-IFP4M Max 6 Loop 1452 devices. ยี่ห้อ GST
242 addressable devices per loop mixing various types of devices, Max. 1452 addresses
Support up to 32 ZCP panel with individual programmable buttons & LED indicators. Max 8 ZCP panels for wall mount cabinet

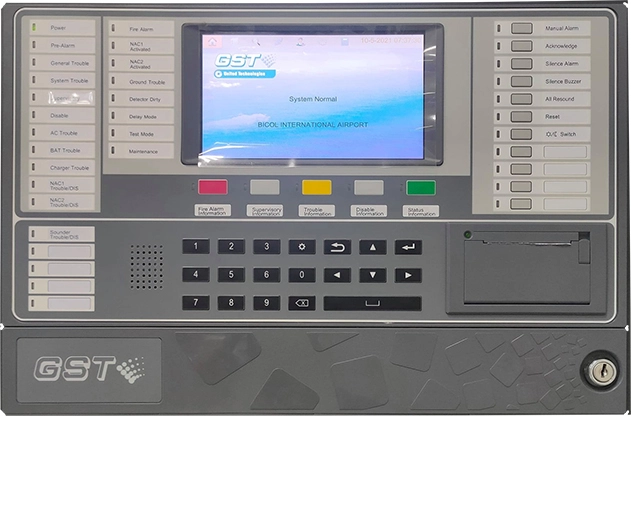

7-inch Touch Screen 800 x 480
Support 1-6 loops in Class A style (additional battery box is required for 5/6 loops)
Wide range power supply
Wall mount with glass door
Built-in multiple languages, currently supports English, traditional
Chinese
Programing via PC or panel keypad and touch screen
USB port for system configuration and firmware update
Password and key-protected nonvolatile memory
Support USB dongle for securing project database
History records of 100,000 events
“Walk test”, silent or audible
PAS (Positive Alarm Sequence) per point
Report device type mismatch and duplicated loop address
